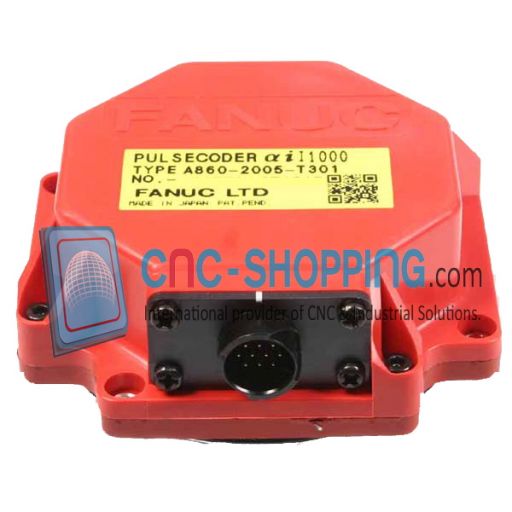

A860-2005-T301 Fanuc Pulse coder Alpha 1000iI

Buy online your Fanuc pulse coder unit reference FANUC A860-2005-T301 for sale online on Cnc-shopping website. This is a Fanuc pulse coder unit type FANUC Alpha a1000iI (Alpha iI1000) for your FANUC AC Servo Motor Model Alpha i or Fanuc Alpha iS Motor. Fanuc pulse coder A860-2005-T301 ready to replace your defective encoder for maintenance on your CNC Machine. The Fanuc A860-2005-T301 comes with a warranty.

When replacing the Pulsecoder and motor cover, be careful not to give a shock to the Pulsecoder or motor, because they are precision devices prone to a breakdown. Also keep them from dust and cutting chips. Remove the four M4 hexagonal socket head bolts that fasten the Pulsecoder. Do not loosen the M3 bolts near each M4 bolt. Remove the FANUC Pulsecoder A860-2005-T301 and Oldham's coupling. Set a new Pulsecoder and a new Oldham's coupling in the motor. Place the Oldham's coupling with the correct orientation, and engage the teeth. Push in the Pulsecoder until the O ring on the Pulsecoder settles in between the motor pocket and Pulsecoder pocket. Be careful not allow the O ring to be caught between other parts. FANUC A860-2005-T301
