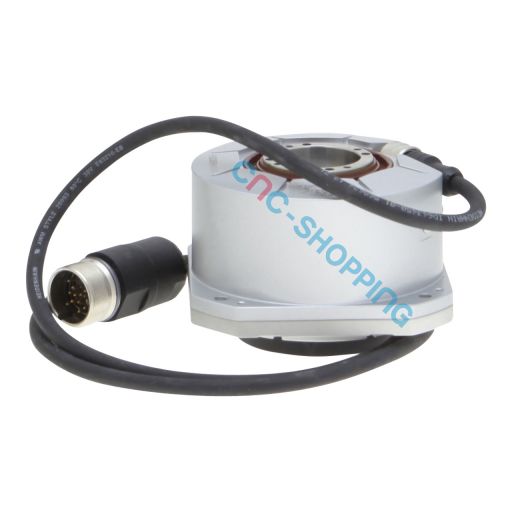

HEIDENHAIN RCN 2380 7KS12-W9 3.6V 14V Id.Nr. 667785-01 EnDat02 Encoder without cable

Be the first to review this product

Starting at €3,600.00 €3,600.00

Product condition Availability Warranty
Price
Refurbished
Ships from: FRANCE Warehouse
stock available Immediate shipment Estimate my delivery
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
€3,600.00 €3,600.00
New
Ships from: FRANCE Warehouse
stock available Available in 5 to 8 days
12 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
€4,600.00 €4,600.00
Estimate my delivery

Enter your destination to get a shipping estimate.

  • High-quality products with warranty
  • Expert technical service
  • Secure payment and PDF invoice

Buy online your HEIDENHAIN RCN 2380 7KS12-W9 3.6V 14V Id.Nr. 667785-01 EnDat02 Encoder 16384 Lines count for sale on Cnc-shopping website. This is a Heidenhain sealed absolute angle encoder from the RCN 2380 series with 20mm hollow through shaft diameter dimensions with integrated stator coupling. With accuracies of up to ±2 arc seconds, absolute angle encoders provide the absolute position value immediately after switch-on or after a disturbance without prior axis movement. The HEIDENHAIN RCN2380 7KS12-W9 encoder photoelectrically scans pure binary patterns on a glass graduated disk to determine the absolute position value. It uses EnDat 02 (synchronous serial) as Data interface with incremental signals of 32768 line counts and absolute position values/rev of 2*23 = 8 388 608.

This HEIDENHAIN RCN 2380 7KS12-W9 3.6V 14V Id.Nr. 667785-01 EnDat02 Encoder 16384 lines is fully tested and comes comes with a warranty.

Heidenhain Id.Nr. 667785-01 RCN 2380 : 67 108 864 (26 bits)

An HEIDENHAIN RCN 2380 7KS12-W9 3.6V 14V Id.Nr. 667785-01 EnDat02 Encoder features an integral stator coupling which, in comparison with encoders with solid shaft and separate coupling, provides the following advantages: Higher system accuracy, During angular acceleration of the shaft the coupling takes up only the torque resulting from bearing friction, Shorter overall length, Simpler mounting. An IP 64 degree of protection enables RCN angle encoders to withstand the harsh environments typically found around machine tools, RCN2380 make units suited for high-precision applications such as rotary tables and swivel heads on machine tools, telescopes, or spectrometers.

Model which can be eventually suitable as a replacement for the following series : HEIDENHAIN RCN 226 18384 Id.Nr. 358655-01 / HEIDENHAIN RCN228 Id.Nr. 533111-01
More Information
AvailabilityImmediate shipment
Pulse coder SignalEnDat02
Weight3.00 kgs
