HEIDENHAIN RCN226 16384 03S17-58 Id.Nr. 362579-05 Encoder EnDat01

Be the first to review this product

Starting at €2,100.00 €2,100.00

Product condition Availability Warranty
Price
Refurbished
Ships from: FRANCE Warehouse
stock available Shipment within 3 days
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
€2,100.00 €2,100.00
  • High-quality products with warranty
  • Expert technical service
  • Secure payment and PDF invoice

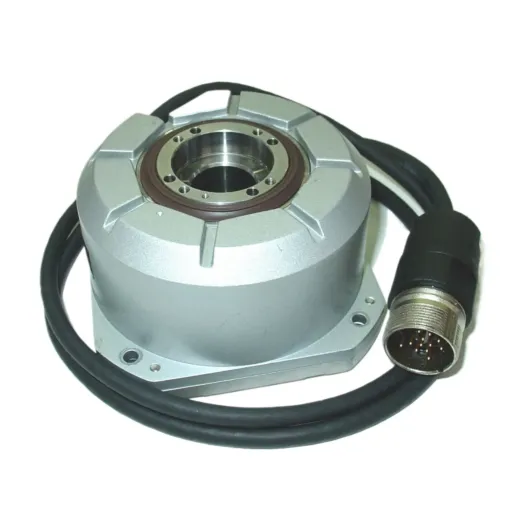

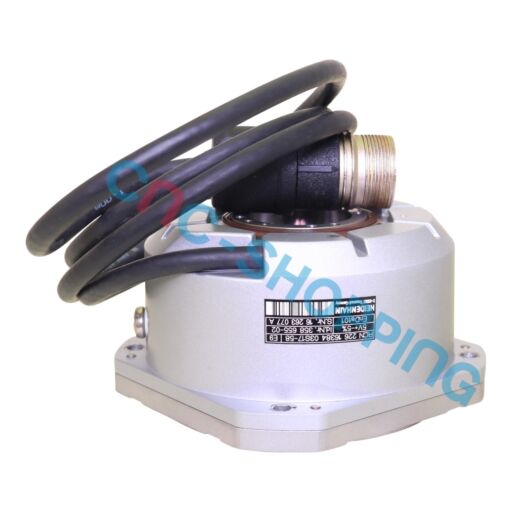

Buy online a HEIDENHAIN HEIDENHAIN RCN 226 16384 03S17-58 Encoder for sale on Cnc-shopping website. This is a Heidenhain sealed absolute angle encoder from the RCN 226 series with 20mm hollow through shaft diameter dimensions with integrated stator coupling. With accuracies of up to ±2 arc seconds, absolute angle encoders provide the absolute position value immediately after switch-on or after a disturbance without prior axis movement. The HEIDENHAIN RCN226 encoder photoelectrically scans pure binary patterns on a glass graduated disk to determine the absolute position value. RCN226 uses EnDat01 (synchronous serial) as Data interface with absolute position values/rev of 2*26 = 67 108 864 Positions /rev.


This HEIDENHAIN RCN 226 16384 03S17-58 is fully tested, it comes with the cable and M23, male, Coupling 17 pins connector. The encoder comes with a warranty.

Heidenhain Id.Nr. 362579-05

An HEIDENHAIN RCN 226 16384 03S17-58 absolute angle encoder features an integral stator coupling which, in comparison with encoders with solid shaft and separate coupling, provides the following advantages: Higher system accuracy, During angular acceleration of the shaft the coupling takes up only the torque resulting from bearing friction, Shorter overall length, Simpler mounting. An IP 64 degree of protection enables RCN angle encoders to withstand the harsh environments typically found around machine tools, RCN226 make units suited for high-precision applications such as rotary tables and swivel heads on machine tools, telescopes, or spectrometers.
More Information
AvailabilityShipment within 3 days
Weight6.00 kgs
