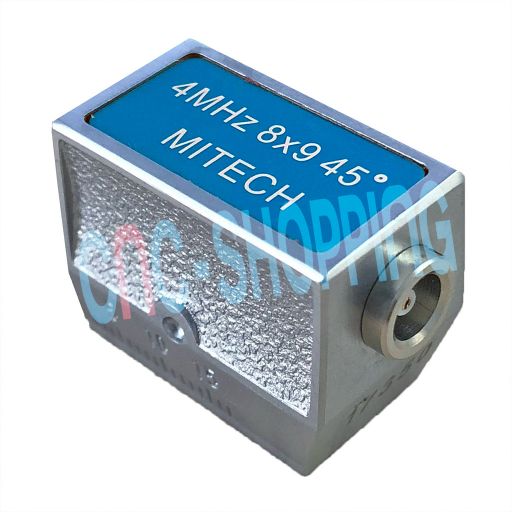

MITECH 4MHz 8x9 45° Angle Sensor Probe Transducer for Ultrasonic Flaw Detector MFD350B MFD500B MFD51

Connecting a MITECH 4MHz 8x9mm 45° Angle Sensor Probe Transducer Probe To prepare the instrument for operation, you have to connect a probe to it. The instrument is available with the probe connectors BNC. When connecting a probe to the instrument, it’s not only important that the probe’s physical connection be properly made. It’s also important that the instrument is properly configured to work with the installed probe. The Instrument will operate with one or two single-element probes or with a dual-element probe. To install a single-element probe such as MITECH 4MHz 8x9mm 45°, connect the probe cable to either of the two ports on the front of the instrument. When two probes, or a dual-element probe is connected to the instrument, the (Receive) probe connector should be installed in the right port and the ‘Transmit’ probe connector in the left port. Connect one single element probe to either port. Connect leads from a Dual Element Probe to both ports. For through-transmission, connect two single element probes to the transmit (left, labeled as ) and receive (right, labeled as ) ports. MITECH 4MHz 8x9mm 45°
