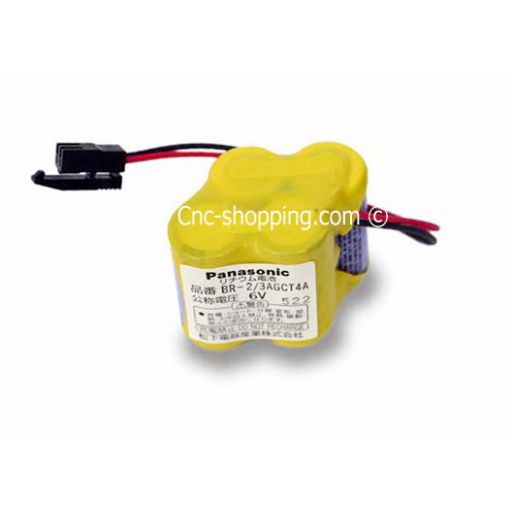

PANASONIC BR-2/3AGCT4A 6V Battery A98L-0031-0025

Buy online your FANUC Panasonic BR-2/3AGCT4A (6V) Lithium Battery (Fanuc battery reference A98L-0031-0025) Brand new for sale in Permanent Stock. The Fanuc A98L-0031-0025 Lithium battery comes with the Black 2 position connector for your FANUC Servo amplifiers (Alpha SVM, Servo drives, Fanuc Alpha i / iS series, GE FANUC Controls (FANUC A06B-6114-K504).

Fanuc A98L-0031-0025 Batteries for FANUC Alpha servo drives. All of our Panasonic Fanuc batteries are genuine, original and authentic batteries made in Japan by Panasonic manufacturer and not some chinese replica.

Permanent Stock and Ships Same-day worldwide.

When replacing your PANASONIC BR-2/3AGCT4A 6V battery, make sure to keep your CNC Machine ON with Emergency stop in order to ensure optimal and safe replacement procedure. It is designed to resolve the Fanuc battery alarm (BAT Alarm, APC Alarm) for a FANUC CNC controller. When a FANUC CNC machine displays a battery alarm, it typically indicates that the battery voltage has dropped below an acceptable level for reliable memory backup. Replacing the old battery with a new Panasonic BR-2/3AGCT4A should clear the alarm of the Absolute position encoder batteries, as this battery is specifically designed to be compatible with FANUC systems and provide the necessary power for memory retention.

It is essential to follow the correct procedure when replacing the Fanuc A98L-0031-0025 battery to avoid data/position loss. Usually, the battery should be replaced while the machine is powered on, which helps to preserve the memory contents and encoder positions. However, it is critical to consult the machine's manual or a professional technician if you are unsure of the correct replacement procedure, as improper handling could result in data loss or further alarms.

If you have replaced the Fanuc A98L-0031-0025 battery and the alarm does not clear, there may be additional steps needed, such as resetting a parameter within the CNC control system or checking for other issues that might be triggering the alarm. It's always recommended to refer to the FANUC CNC system's documentation or contact technical support for specific instructions related to your machine model.

The Panasonic BR-2/3AGCT4A Lithium battery Battery 6V, also known as the FANUC A98L-0031-0025, is a specialized battery commonly used in industrial and robotics applications, particularly for backup memory encoder positions for the Fanuc servo amplifiers in CNC (Computer Numerical Control) machinery.

Technical Specifications Panasonic BR-2/3AGCT4A Lithium battery Battery 6V A98L-0031-0025:

- Dimensions: (42x33x33mm)
- Battery Type: Lithium
- Voltage: 6V
- Capacity: Typically around 2900mAh to 3000mAh
- Size: 2/3 A
- Number of Cells: Four cells connected in series
- Connector Type: T4A plug (2-POS Black connector)
- Operating Temperature Range: These batteries are often rated for a wide temperature range, which is crucial for industrial environments. The range can be approximately -40°C to +85°C (-40°F to +185°F).
- Shelf Life: High shelf life due to low self-discharge rate, often several years under proper storage conditions.
- Rechargeability: These batteries are non-rechargeable and designed for long-term use in backup applications.
- Compatibility: Specifically designed for FANUC systems as part of the power supply for FANUC Absolute encoder positions (during power off) in CNC machines.

Design Features:
- Robust Construction: Designed to withstand the vibrations and temperature fluctuations typical in industrial settings.
- High Energy Density: Lithium cells provide a high energy density, which means more power is packed into a smaller package.
- Longevity: The battery is engineered to last for a significant number of years, which is essential to minimize downtime in industrial applications.
- Reliability: They are known for their reliability and consistent performance, a crucial factor for the automation industry where battery failure can lead to costly production halts.

Safety Notes:
- Non-Rechargeable: Attempting to recharge can cause rupture or leak, which could lead to injury or damage to the equipment.
- Handling Precautions: Proper handling and disposal according to the manufacturer's guidelines and local regulations are important due to the lithium content.

Applications:

The Panasonic BR-2/3AGCT4A is specifically tailored for FANUC CNC systems, robots, and servo drives among other equipment. Its role is often to maintain backup power for encoder position memory in CNC machines (from the Fanuc servo amplifiers) and other critical industrial devices.
